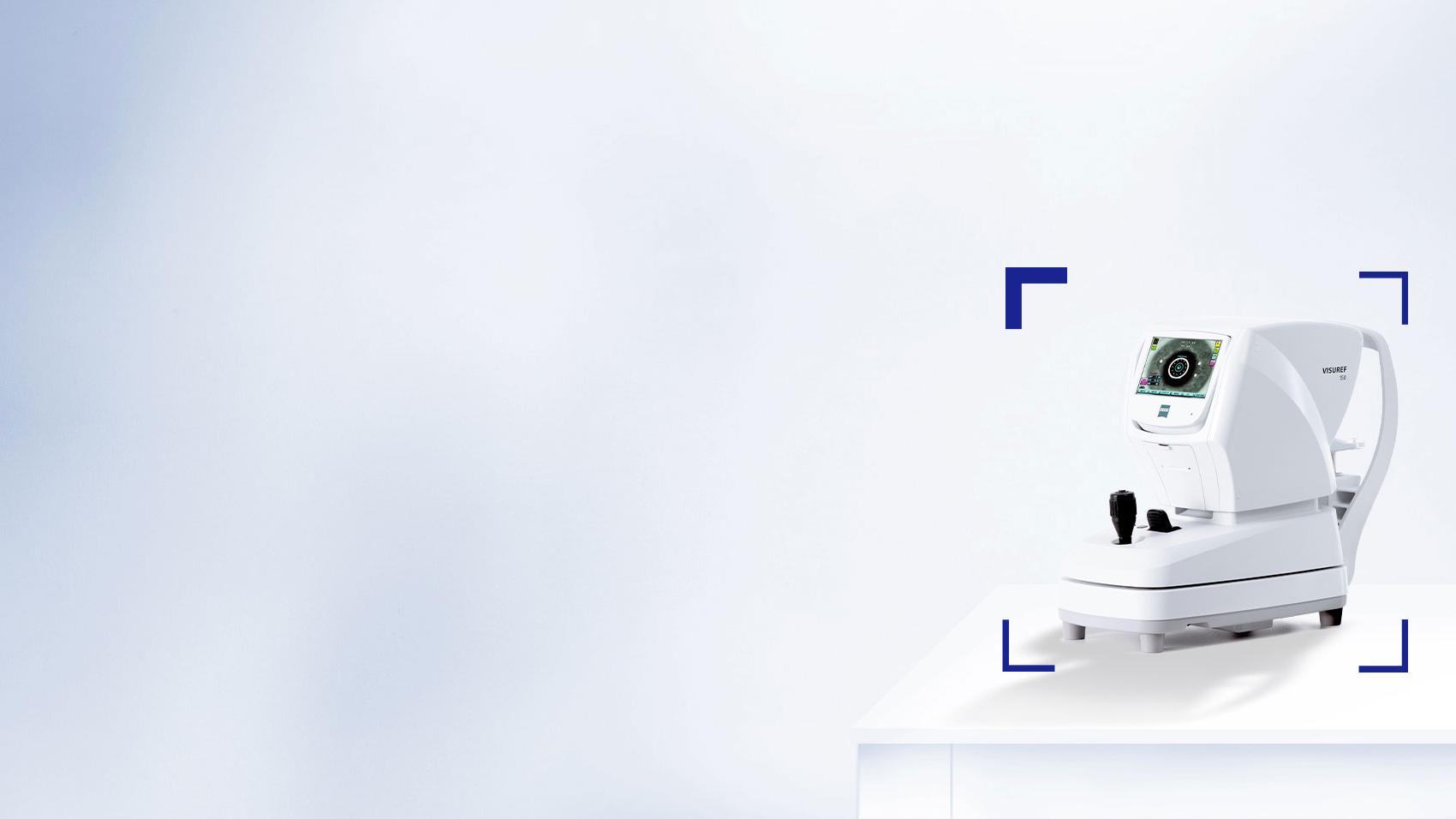

ZEISS VISUREF 150 Autorefractor and Keratometer

VISUREF® 150 from ZEISS is a basic professional instrument that combines reliable performance with great user convenience. It delivers fast, reliable objective refraction and keratometry results for an in-depth assessment of patient condition. Easy to set up and use, the ZEISS VISUREF 150 can be operated after a short training period.

Get in touch
  • Intuitive and modern
  • Enhanced connectivity
  • Flexible instrument control

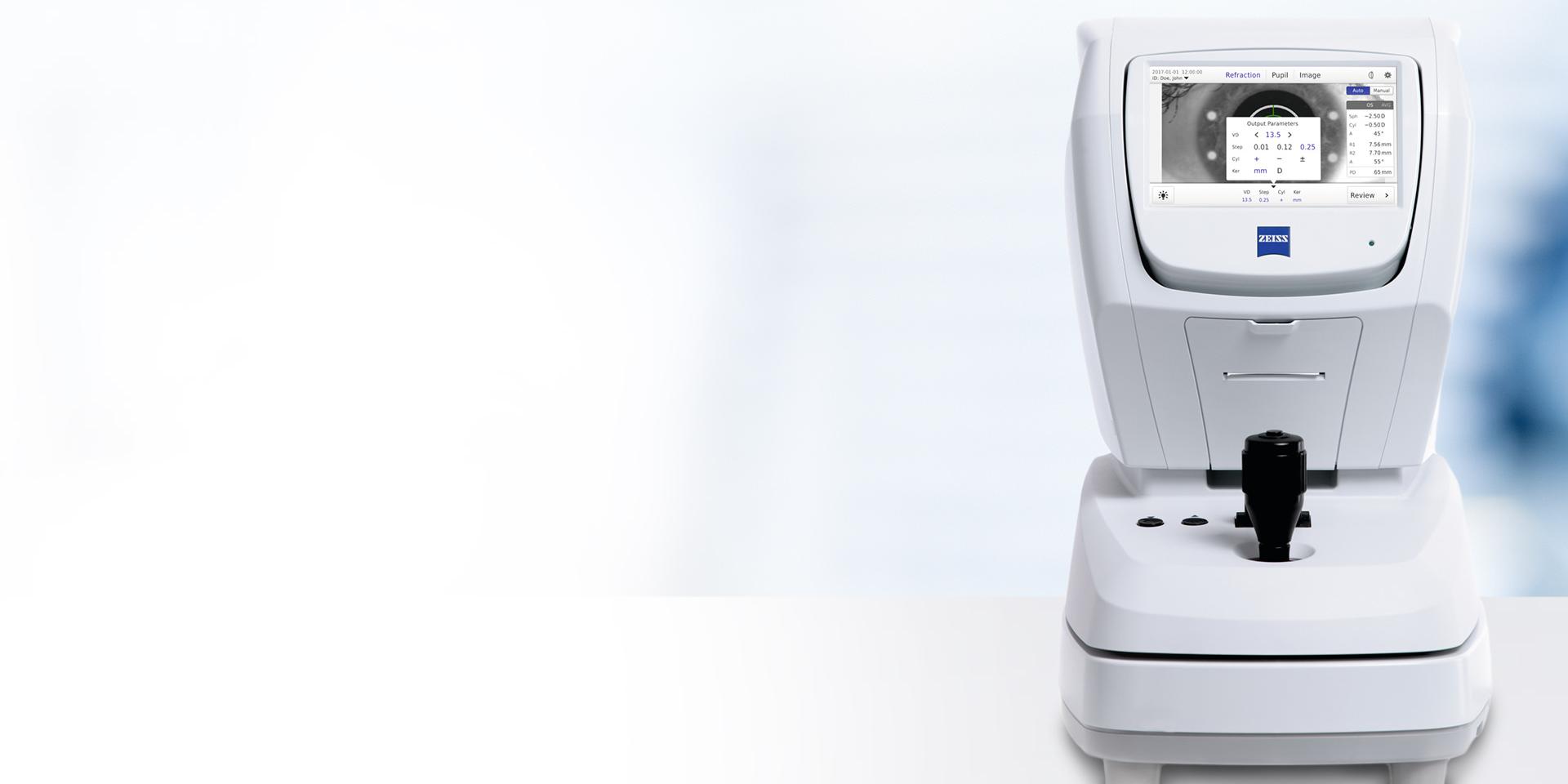

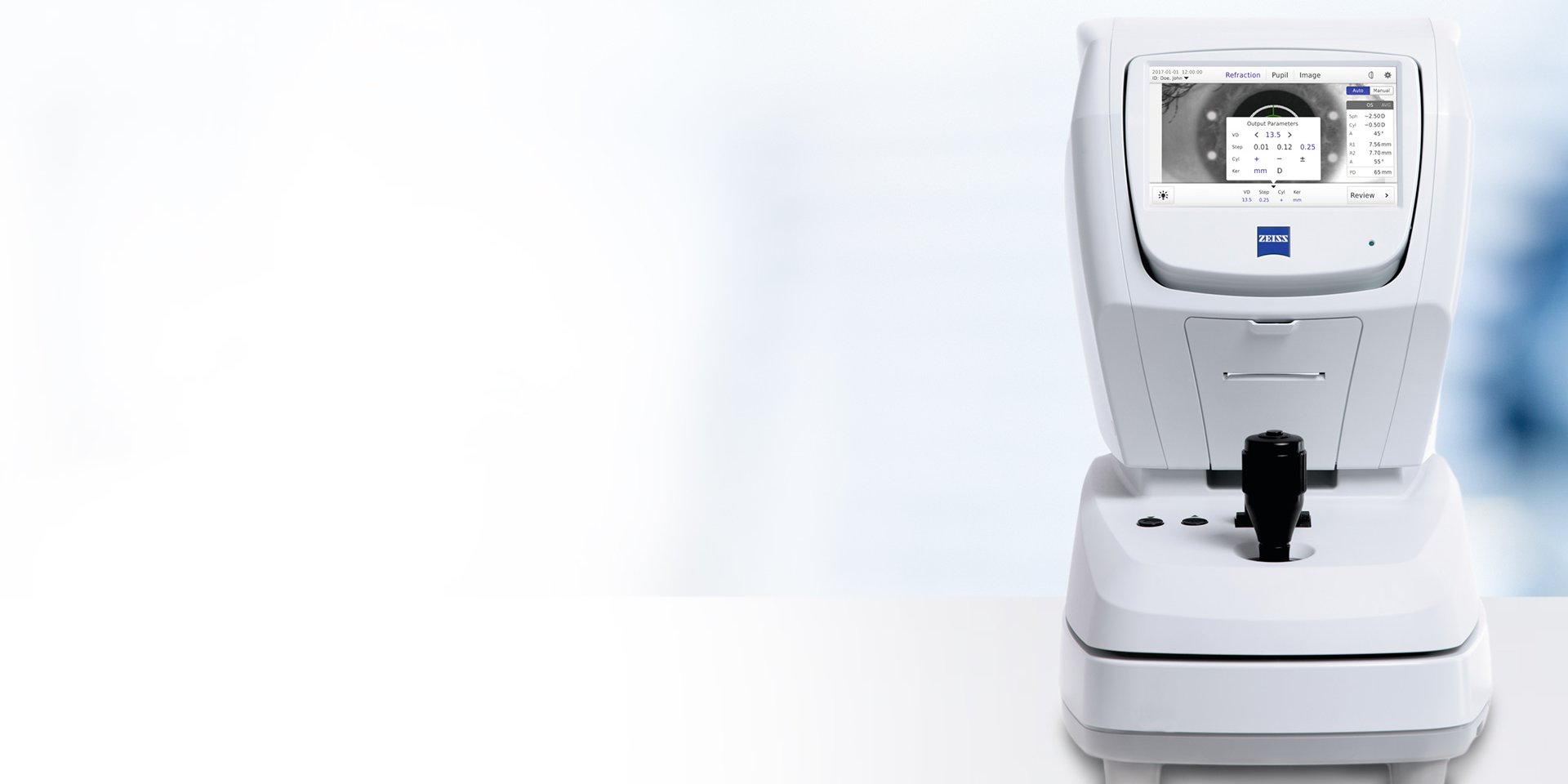

Intuitive user interface

Apart from refraction and keratometry the intuitive, workflow-oriented user interface also conducts cornea and pupil diameter measurements, image capturing and contact lens base curve measurements. Adaptable illumination parameters allow measurements of patients with implanted intraocular lenses (IOLs). The automatic fogging incorporates an infinity scene that reduces the effects of accommodation.

The intuitive user interface guides the user through the main workflow steps of the refractive assessment. Choose from different measurement settings (e.g. manual, auto trigger) and various illumination parameters (e.g. IOL mode) for optimal results.

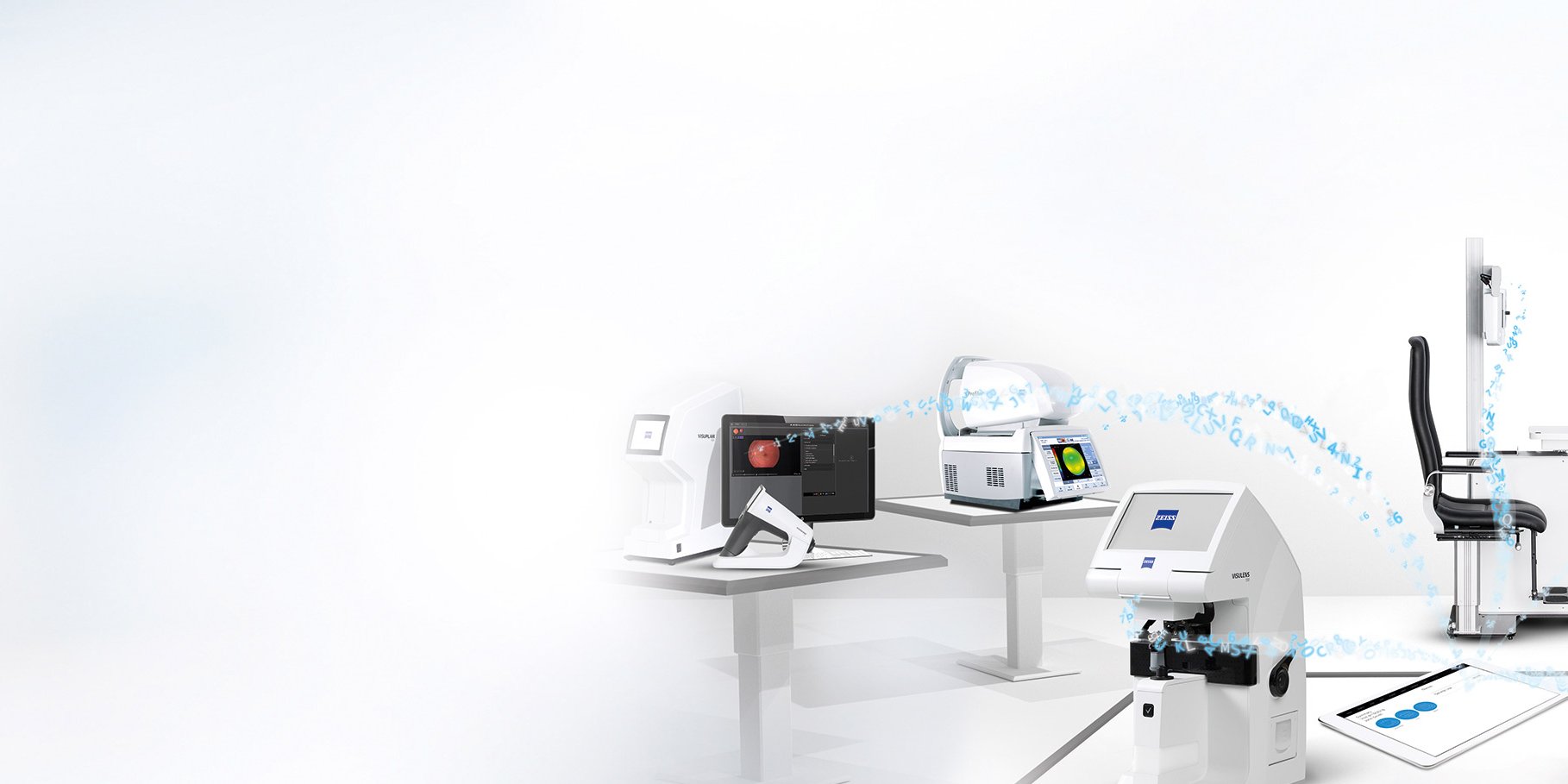

Enhanced connectivity

Quickly retrieve previous measurements via the local device memory. View all details for up to 10 measurements per eye and their average values. Print out results with the integrated thermal printer or as a PDF file over a network printer.

The enhanced connectivity of ZEISS VISUREF 150 via ZEISS VISUCONSULT 500 makes your daily routine even more efficient: review measurement data on a PC or an iPad and via the web server interface.

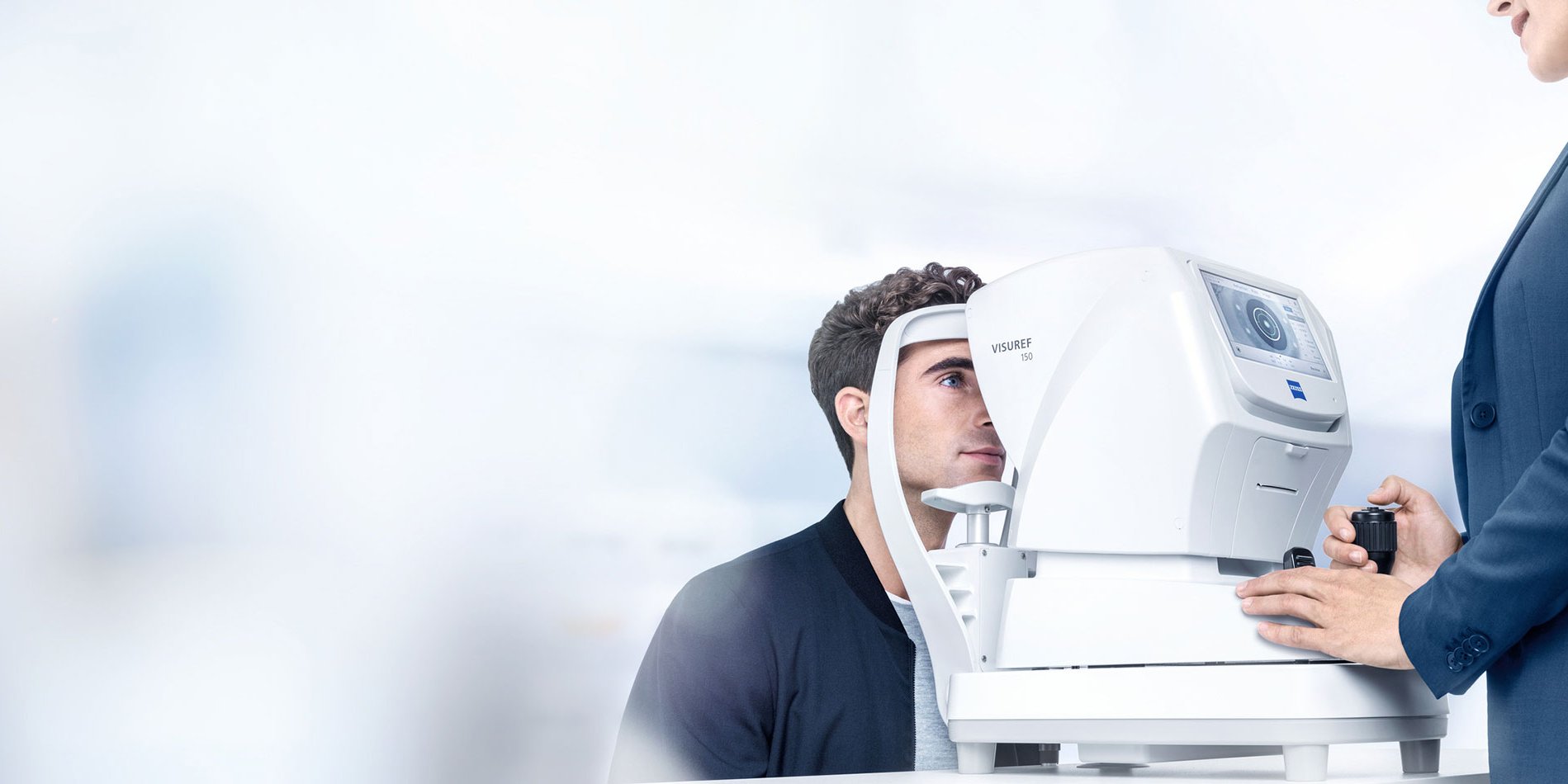

Flexible instrument control

Conducting measurements with the touch screen and joystick is very easy. Diagnostic information is displayed in excellent resolution on the adjustable colour touch monitor. Patients are quickly and comfortably positioned with the motorised chin rest. The integrated quick release brake prevents unintended movements of the instrument base.

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Specifications

  • Sphere
    -25.00 D to +22.00 D in steps of 0.12 D / 0.25 D
    Cylinder
    0.00 D to ±10.00 D in steps of 0.12 D / 0.25 D
    Axis
    0° to 180°, in steps of 1°
    Corneal vertex distance
    0.00, 10.00, 12.00, 13.50, 15.00 mm
    Pupil distance (PD)
    10 mm to 85 mm
    Min. pupil diameter
    2 mm
    Chin rest movement
    max. 65 mm, motorised
    Printer
    Internal thermal printer (paper width 57 mm), PDF print out via network printer possible
    Connectivity
    1 × serial interface RS 232; fully isolated 2MOPP 1 × network connection (LAN 10 / 100); fully isolated 2MOPP Supported data output options: to EMR, PMS systems file-based to network folder and USB stick Web service interface for data retrieval 1 × USB interface (for USB stick only) 1 × VGA monitor output
    Output data format
    XML (JOIA), PDF
    Power supply
    100 V to 240 V AC ±10 %; 50 / 60 Hz
    Dimensions (W × D × H)
    275 mm × 525 mm × 450 mm
    Weight
    18 kg
  • Corneal curvature
    5.00 to 10.20 mm, in steps of 0.01 mm
    Corneal refraction
    33.00 D to 67.50 D, in steps of 0.12 D / 0.25 D
    Corneal astigmatism
    0.00 D to -15.00 D, in steps of 0.12 D / 0.25 D
    Axis
    0° to 180°, in steps of 1°
    Corneal diameter
    2.00 to 12.00 mm, in steps of 0.10 mm

Contact Us

Schedule an appointment

Our experts will visit you at your practice

Form is loading...

The information entered in the contact form will be used to answer your request by Carl Zeiss India (Bangalore) Pvt. Ltd by E-Mail or phone. Click here to read our statement on data protection.

Become a ZEISS partner

Join forces with us and benefit from a strong partnership

Form is loading...

The information entered in the contact form will be used to answer your request by Carl Zeiss India (Bangalore) Pvt. Ltd by E-Mail or phone. Click here to read our statement on data protection.

Further Information

Product | ZEISS Medical Device
Legal manufacturer
Legal distributor

VISUCORE 500 Refractor*

CZV

VISUCORE 500 Table

CXE

CZV

VISUSCREEN 100 Compact

CZV
VISUFIT 1000 Platform
CZV
VISUFIT 1000 *
CZV
VISUCONSULT 500
CZV

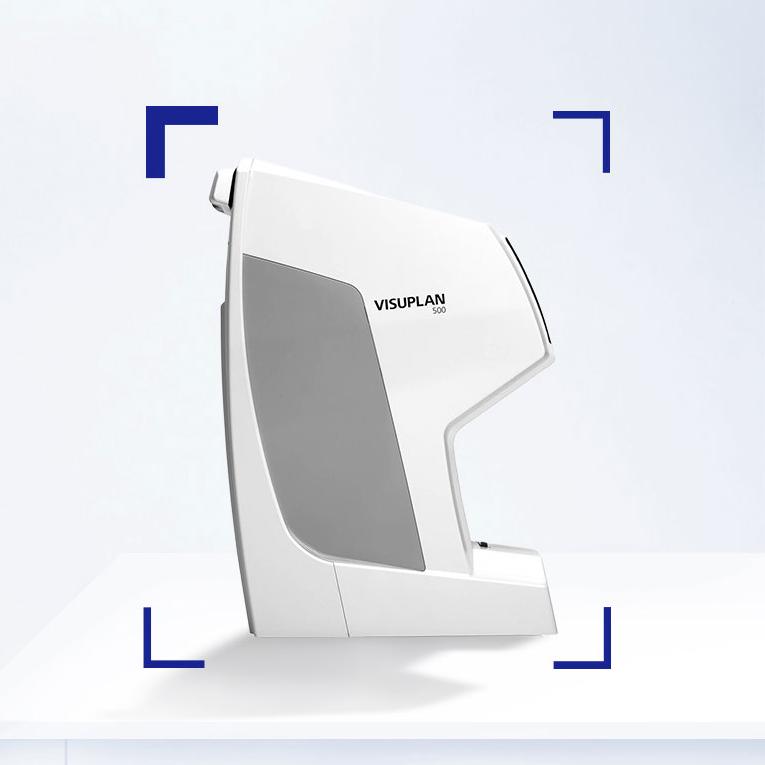

VISUPLAN 500 *
CZM
CZV

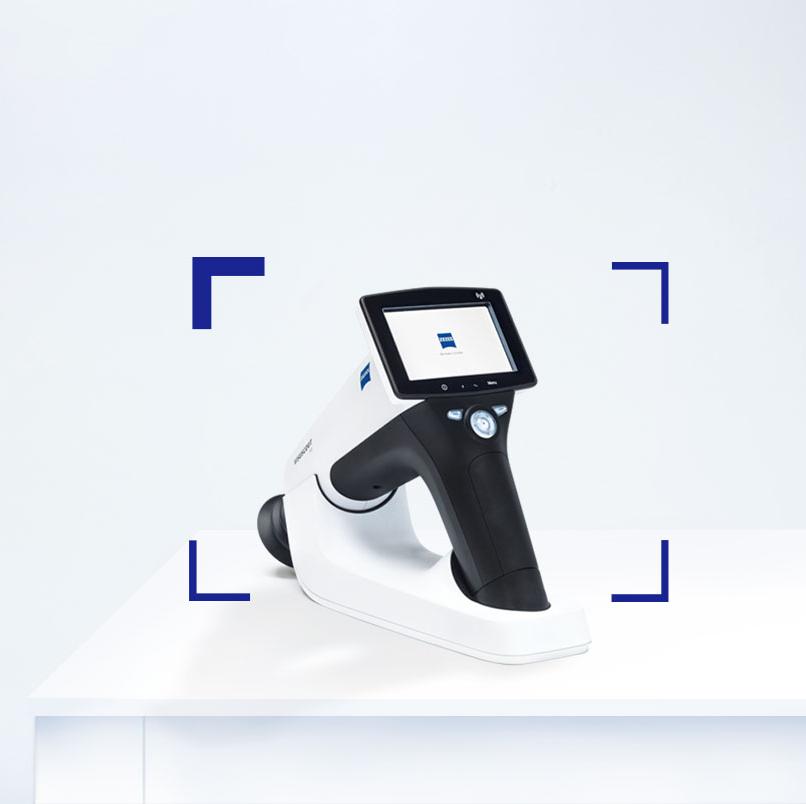

VISUSCOUT 100 **
OO
CZV

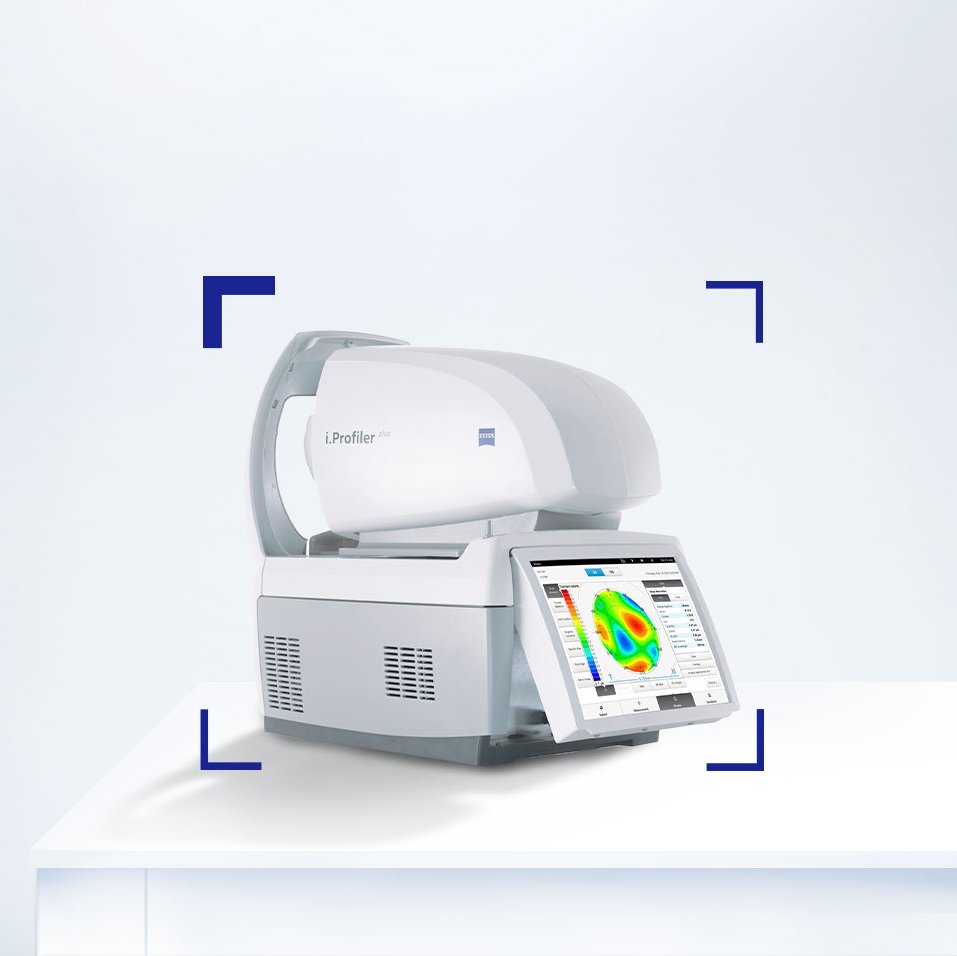

i.Profiler plus*
